4" x 1-1/4" High Temp Phenolic Wheel Swivel Caster with 3/8" Threaded Stem & Brake - 350 Lbs Capacity

Mappcaster

$22.06
Regular price $22.06

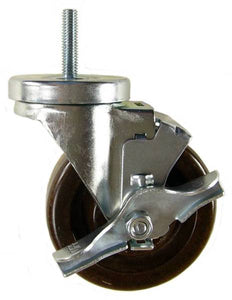

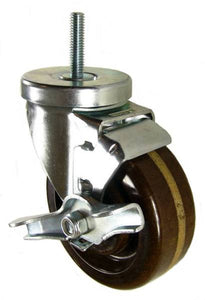

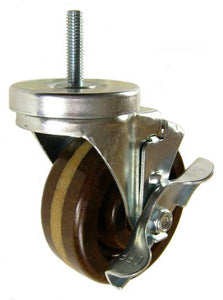

4" x 1-1/4" HIGH TEMP PHENOLIC WHEEL SWIVEL CASTER WITH 3/8" THREADED STEM AND BRAKE - Part #: Q524038HEATTLB-PH

High Temp Phenolic Wheels have a temperature range up to 475˚F continuous and 525 ˚F intermittent. Made of macerated canvas with cellulose fibers and impregnated with phenolic resin, these caster wheels are best for dry heat applications, like bakery racks. The hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. This wheel is not recommend for frequent wash down applications or wet environments. For a high temp wheel that can be used in wash down or wet environments, we recommend high temp epoxy or heateater wheels.

Specifications:

Load Capacity (lbs.): 350 Link to Replacement Wheel: LHT40HQ90
Wheel Diameter: 4" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/2" Swivel or Rigid Caster: Swivel
Wheel Type: Phenolic Swivel Radius: 3-13/32"
Wheel Bearing Type: Plain Swivel Construction/Diameter: Kingpin
Overall Height: 5" Temp Range: -40 to 475˚F
Stem Size: 3/8" Wheel Durometer: Shore 95 D (+/-5)
Stem Length: 1-1/2" Wheel Color: Brown
Stem Thread Pitch: 16 Weight: 2.25 lbs.

4" x 1-1/4" HIGH TEMP PHENOLIC WHEEL SWIVEL CASTER WITH 3/8" THREADED STEM AND BRAKE - Part #: Q524038HEATTLB-PH

High Temp Phenolic Wheels have a temperature range up to 475˚F continuous and 525 ˚F intermittent. Made of macerated canvas with cellulose fibers and impregnated with phenolic resin, these caster wheels are best for dry heat applications, like bakery racks. The hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. This wheel is not recommend for frequent wash down applications or wet environments. For a high temp wheel that can be used in wash down or wet environments, we recommend high temp epoxy or heateater wheels.

Specifications:

Load Capacity (lbs.): 350 Link to Replacement Wheel: LHT40HQ90
Wheel Diameter: 4" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/2" Swivel or Rigid Caster: Swivel
Wheel Type: Phenolic Swivel Radius: 3-13/32"
Wheel Bearing Type: Plain Swivel Construction/Diameter: Kingpin
Overall Height: 5" Temp Range: -40 to 475˚F
Stem Size: 3/8" Wheel Durometer: Shore 95 D (+/-5)
Stem Length: 1-1/2" Wheel Color: Brown
Stem Thread Pitch: 16 Weight: 2.25 lbs.
