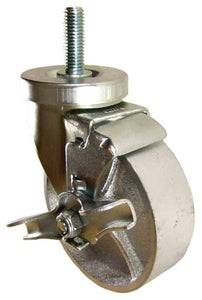

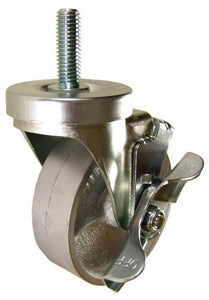

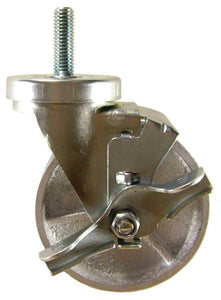

4" x 1-1/4" Semi-Steel Wheel Swivel Brake Caster with 1/2" Threaded Stem - 350 Lbs Capacity

Mappcaster

$23.51

Social Sharing

  • Description

4" x 1-1/4" Semi-Steel Wheel Swivel Brake Caster with 1/2" Threaded Stem - Part # Q504022STLTLB

Metal wheels are the most durable and longest lasting type of caster wheel available in this size. However, while metal wheels are very strong and durable, they are rough on floors and could lead to floor damage. For floor protective wheels, be sure to check out our polyurethane, rubber, and polyolefin wheels.

Specifications:

Load Capacity (lbs.): 350 Link to Replacement Wheel: LSS414
Wheel Diameter: 4" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/4" Swivel or Rigid Caster: Swivel
Wheel Type: Cast Iron Swivel Radius: 3-13/32"
Wheel Bearing Type: Plain Swivel Construction/Diameter: Kingpin
Overall Height: 5" Temp Range: -40°F to 600˚F
Stem Size: 1/2" Wheel Hardness: Brinell 145
Stem Length: 1-1/2" Wheel Color: Silver
Stem Thread Pitch: 13 Weight: 2.59 lbs.
