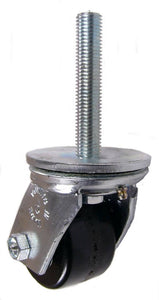

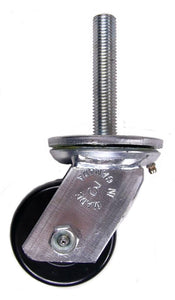

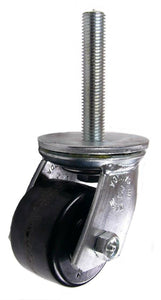

3-1/4" x 2" Phenolic Wheel Swivel Caster, 3/4"-10 x 4 Threaded Stem - Part # 7RTP032DURB
Phenolic wheels are a great alternative to steel wheels. They provide similar capacity, but better floor protection, slightly quieter rolling, do not rust, & are more economically priced.
Phenolic wheels are made using phenolic resin mixed with macerated canvas which yields a high capacity & high impact wheel. They have hard treads & will not flat spot over time which is why they are often used on equipment that is under constant heavy loads, such as storage bins, dumpsters, & BBQ Pits. Phenolic wheels are resistant to oil, grease, solvents, non-metallic, & non-sparking.
We recommend phenolic wheels for many applications, however, if you need more floor protection, a cushioned ride, or a quiet rolling wheel, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
 Capacity: 700 Lbs.
|
 Stem Size: 3/4"
|
 Wheel Diameter:3-1/4"
|
 Stem Thread Pitch:10
|
 Tread Width: 2"
|
 Stem Length:4"
|
 Tread Shape:Flat
|
 Overall Height:5-5/16"
|
 Bearing Type:See Bearings Options
|
 Caster Rig Material Type:Cold Rolled Steel
|
 Wheel Type:Phenolic
|
 Caster Rig Color/Finish:Silver Zinc Plated
|
 Wheel Durometer: Shore 90 D (+/-5)
|
 Swivel Radius: 3"
|
 Wheel Color: Black
|
 Swivel Construction: Double Ball Raceway - 5/8" Kingpin
|
 Temp Range: -45˚F to 250˚F
|
 Weight: 3.846 Lbs
|
|
|
 Link to Matching Swivel Brake Caster: None
|
