5" x 1-1/4" Replacement Shopping Cart Casters with Nuts - Part # Q815022PLY-Nut
This 5 inch replacement shopping cart caster fits most shopping carts or buggies but we recommend making sure your current caster matches the measurements below.

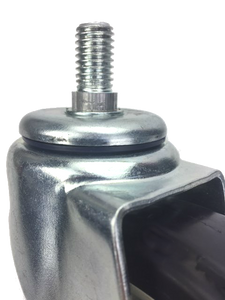

The wheel is a 5” diameter floor protective, non-marking polyurethane wheel that provides a smooth and quiet roll. The complete caster has a 5-7/8 inch mounting height when measured from the bottom of the wheel to the base of the stem. The stem size is ½ inch diameter by 1 inch long and includes a keylock at the base of the stem. These swivel casters are typically used on the front of shopping carts and provide 250 pounds of capacity per casters.
Specifications:
|
Load Capacity (lbs.): 250 |
Link to Replacement Wheel: R5203A
|
|
Wheel Diameter: 5" |
Caster Rig Color/Finish: Silver Zinc Plated |
|
Tread Width: 1-1/4" |
Swivel or Rigid Caster: Swivel |
|
Wheel Type: Polyurethane |
Swivel Radius: 3-11/16" |
|
Wheel Bearing Type: Ball Bearings |
Swivel Construction/Diameter: Double Ball Bearing |
|
Overall Height: 5-7/8" |
Temp Range: -20 to 180˚F |
|
Stem Size: 1/2" |
Wheel Durometer: Shore 60 D (+/-5) |
|
Stem Length: 1" with Keylock at Base |
Wheel Color: Dark Blue |
|
Stem Thread Pitch: 13 |
Weight: 1.50 lbs |
