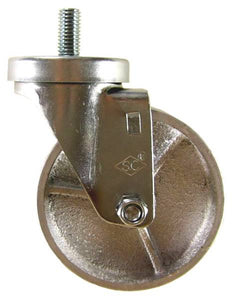

4" x 1-1/4" Semi-Steel Wheel Swivel Caster with 1/2" Threaded Stem (1" Inch Stem) - 350 Lbs Capacity

Mappcaster

$11.97
Regular price $11.97

4" x 1-1/4" SEMI-STEEL WHEEL SWIVEL CASTER WITH 1/2" THREADED STEM - Part #: Q524021STL

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options. Please note that all 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

While semi steel is very strong, it is tough on floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

Options:

Stem Length 1-1/2" Inch Stem


Specifications:

Load Capacity (lbs.): 350 Link to Replacement Wheel: LSS414
Wheel Diameter: 4" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/4" Swivel or Rigid Caster: Swivel
Wheel Type: Hard Rubber Swivel Radius: 3-13/32"
Wheel Bearing Type: Plain Swivel Construction/Diameter: Kingpin
Overall Height: 5" Temp Range: -40 to 600˚F
Stem Size: 1/2" Wheel Hardness: Brinell 145
Stem Length: 1" Wheel Color: Grey
Stem Thread Pitch: 13 Weight: 2.35 lbs.
