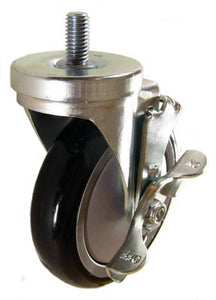

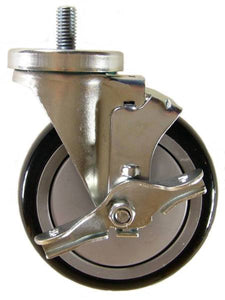

5" x 1-1/4" Polyurethane Wheel Swivel Caster with 1/2" Threaded Stem & Brake (1" Stem Length) - 350 Lbs Capacity

Mappcaster

$12.10
Regular price $12.10

5" x 1-1/4" POLYURETHANE WHEEL SWIVEL CASTER WITH 1/2" THREADED STEM AND BRAKE - Part #: Q525021PLYTLB

Polyurethane on polyolefin wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on polyolefin wheels are going to be the most economically priced of the polyurethane wheels and great for general industrial applications. These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Options:

 Stem Length 1-1/2" Inch Stem


Specifications:

Load Capacity (lbs.): 350 Link to Replacement Wheel: R5203B
Wheel Diameter: 5" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/4" Swivel or Rigid Caster: Swivel
Wheel Type: Polyurethane Swivel Radius: 4"
Wheel Bearing Type: Plain Swivel Construction/Diameter: Kingpin
Overall Height: 6-1/8" Temp Range: -40 to 180˚F
Stem Size: 1/2" Wheel Durometer: Shore 60 D (+/-5)
Stem Length: 1" Wheel Color: Black
Stem Thread Pitch: 13 Weight: 1.95 lbs
