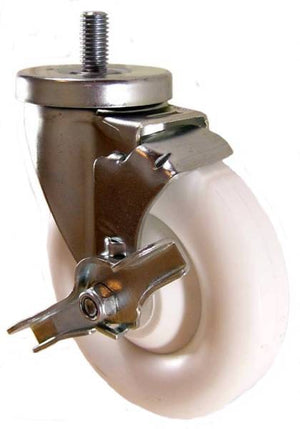

5" x 1-1/4" RETORT WHEEL SWIVEL CASTER WITH 1/2" THREADED STEM AND BRAKE - Part #: Q525021RETTLB
Retort Wheels are hard plastic and most often used in food facilities, such as meat packing plants, because their white color easily shows whether the wheel is clean or not. The wheels is made out of heavy duty plastic and are designed to not crack or chip. These wheels are lightweight yet hold high weight capacities and are also non-marking. They also are washable, steam cleanable, impervious to water, and highly resistant to solvents, oils, grease, most chemicals, and cleaning solutions. These wheels are similar to polyolefin and nylon wheels but offer a higher temperature rating.
Options:
Specifications:
Load Capacity (lbs.): 350 |
Link to Replacement Wheel: R5121C
|
Wheel Diameter: 5" |
Caster Rig Color/Finish: Silver Zinc Plated |
Tread Width: 1-1/4" |
Swivel or Rigid Caster: Swivel |
Wheel Type: Retort |
Swivel Radius: 4" |
Wheel Bearing Type: Plain |
Swivel Construction/Diameter: Kingpin |
Overall Height: 6-1/8" |
Temp Range: -20 to 290˚F |
Stem Size: 1/2" |
Wheel Durometer: Shore 70 D (+/-5) |
Stem Length: 1" |
Wheel Color: White |
Stem Thread Pitch: 13 |
Weight: 2.02 lbs |
