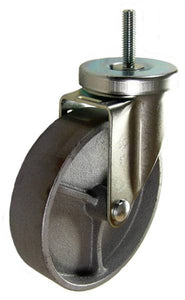

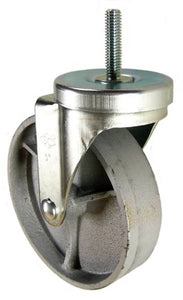

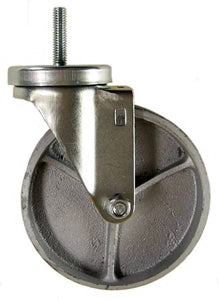

5" x 1-1/4" SEMI-STEEL WHEEL SWIVEL CASTER WITH 3/8" THREADED STEM - Part #: Q525038STL
Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options. Please note that all 2" wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.
While semi steel is very strong, it is tough on floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.
Specifications:
Load Capacity (lbs.): 350 |
Link to Replacement Wheel: LSS514
|
Wheel Diameter: 5" |
Caster Rig Color/Finish: Silver Zinc Plated |
Tread Width: 1-1/4" |
Swivel or Rigid Caster: Swivel |
Wheel Type: Semi-Steel |
Swivel Radius: 4" |
Wheel Bearing Type: Plain |
Swivel Construction/Diameter: Kingpin |
Overall Height: 6-1/8" |
Temp Range: -40 to 600˚F |
Stem Size: 3/8" |
Wheel Hardness: Brinell 145 |
Stem Length: 1-1/2" |
Wheel Color: Black |
Stem Thread Pitch: 16 |
Weight: 2.84 lbs |
