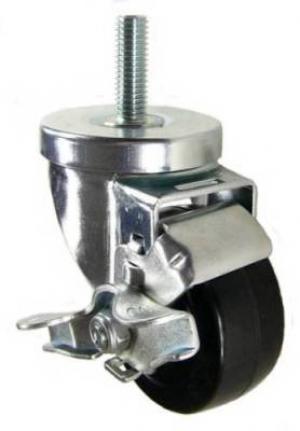

3" x 1-1/4" Soft Rubber Wheel Swivel Caster with 1/2" Threaded Stem & Brake- 200 Lbs Capacity

Mappcaster

$7.91
Regular price $7.91

3" x 1-1/4" SOFT RUBBER WHEEL SWIVEL CASTER WITH 1/2" THREADED STEM AND BRAKE - Part #: Q523022SRTLB

Soft rubber wheels are economically priced and are recommended for applications that don’t require high capacities or non-marking treads. The rubber treads provide good floor protection, semi-cushioned ride, and quite rolling. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under load.

Specifications:

Load Capacity (lbs.): 200 Link to Replacement Wheel: QSR3H3
Wheel Diameter: 3" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/4" Swivel or Rigid Caster: Swivel
Wheel Type: Soft Rubber Swivel Radius: 2-7/8"
Wheel Bearing Type: Ball Swivel Construction/Diameter: Kingpin
Overall Height: 4-1/8" Temp Range: -40 to 180˚F
Stem Size: 1/2" Wheel Durometer: Shore A 80 (+/-5)
Stem Length: 1-1/2" Wheel Color: Black
Stem Thread Pitch: 13 Weight: 1.61 lbs.
